3D Conversion of Aerostructure 2D Models

Case Study

A Global Aerostructure Manufacturer

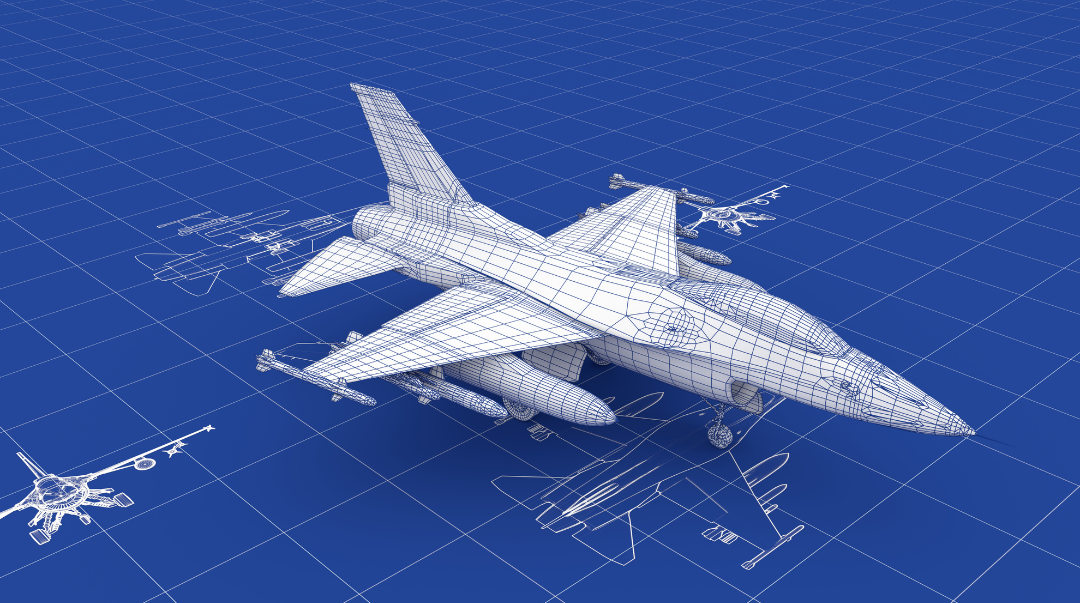

Case Study Image

Project Scope

  • Review existing 2D model per and apply new modifications in the drawings
  • Check GD&T of modified models as per best manufacturing practices
  • Convert 2D drawings to highly accurate 3D models with best design engineering techniques

Project Deliverables

  • New 2D drawings as per design change request
  • GD&T changes records sheet
  • 3D designs for converted models
  • BOM for existing assemblies

Key Tools

  • Creo 6.0
  • SolidWorks 2021
