Fuel & Hydraulic System Stress Analysis

Case Study

A global leader in the Aerospace and Defense industry

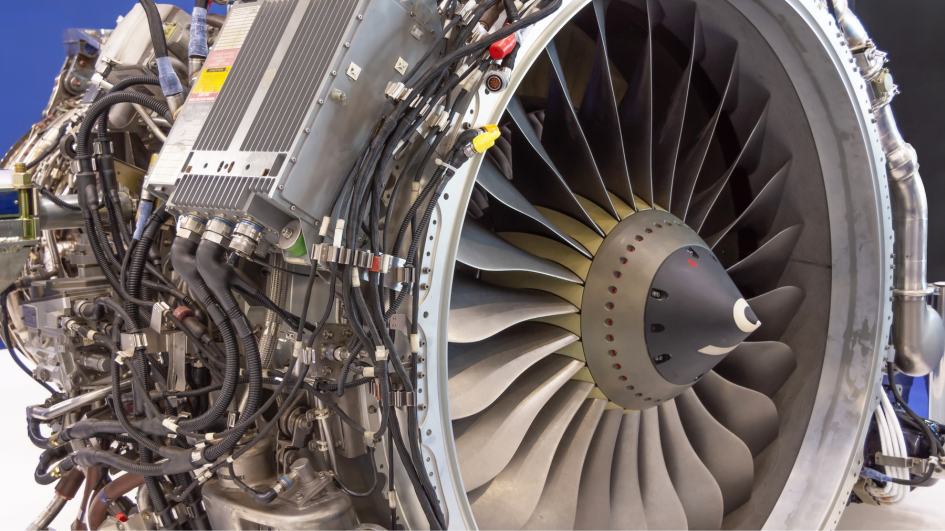

Case Study Image

Project Scope


  • Stress analysis of fuel and hydraulic system in an aircraft.
  • Stress analysis considering wing bending loads and interface loads under predefined operating conditions.

Project Deliverables

  • Preparation of stress automation sheet from von-mises stress results.
  • Design changes and alternate solutions to eliminate the criticalities.
  • Stress analysis reports & vector plots for hydraulic system.
  • Hydraulic tubing mounting bracket sizing by considering the reaction forces from the above analysis.

Key Tools

  • CATIA V5
  • ANSYS
